Windbreak panels for power plants and coal mines wind dust control

Windbreak panels and windbreak wall are the most advanced environmental technology for bulk material wind control and dust pollution control in the large-scale open-air yard, such as coal mine. Installing windbreak wall can reduce a range of wind speeds, improve environmental quality. It can create a more favorable environment for people living and production.

Windbreak wall, also known as wind barrier or wind and dust fence, is the use of a certain opening rate perforated metal sheet to reduce wind speed and dust. First, as a steel barrier to prevent dust flying, the second, creating a microenvironment to regulate the air flow, in order to achieve a large yard wind break and dust control technology. The technology is to maximize the consumption of kinetic energy of wind, to reduce the wind speed, to avoid the wind significant vortex, so as to achieve a good effect of dust control and windproof. The integrated windproof and dust control effect of our windbreak panel wall is very obvious. Wind and dust comprehensive effect of single layer windbreak wall is up to 65% - 85%.

Features:

• High strength, toughness, resistance to bending.
• Anti-aging, anti-corrosion, rustproof, anti high temperature, and anti-acid.
• Electrical insulation, fire retardant.
• Flat and smooth surface can be colored in various colors.
• Simple structure, easy to install and maintenance-free.
• Long service life, generally up to 10 years.

Windbreak panels Details:

• Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet, nickel-plated bright sheet.
• Surface treatment: electro static power coating.
• Electrostatic Polyethylene spray color: blue, red, orange, green, yellow. Blue is the common color.
• Length: 0.5m - 8.0m.
• Common thickness 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm. This is after coating thickness, and the coating layer is thickness 0.1mm.
• Perforation holes shape: round, oval, rectangle.
• Holes diameter: 6mm - 10mm.
• Aperture Opening Rate: 30% - 40%.
• Types: wind dust net includes single peak wind dust net, twins peaks wind dust net, three peaks wind dust net, and five peaks wind dust net.

Single peak windbreak panel
Peak height: 50mm - 100mm
Plate thickness: 0.5mm - 1.5mm
Panel width: 250mm - 500mm

Twins peak windbreak panel
Peak height: 50mm - 100mm
Plate thickness: 0.5mm - 1.5mm
Panel width: 400mm - 800mm

Three peak windbreak panel
Peak height: 50mm - 80mm
Plate thickness: 0.5mm - 1.5mm
Panel width: 810mm - 940mm

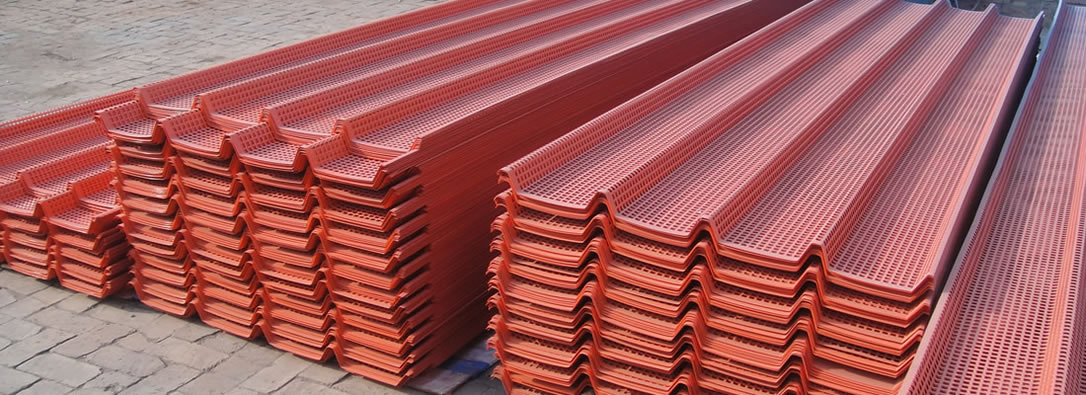

Five peak windbreak panel
Peak height: 20mm, 50mm
Plate thickness: 0.6mm - 1.5mm
Panel width: 940mm

Hole pattern:

1. Double top hole, single-row side hole.
2. Double top hole, double-row side hole.
3. Single-row top hole, single-row side hole.
4. Single-row top hole, double-row side hole.

Windbreak panel wall Design:

Windbreak wall is composed of three parts: reinforced concrete foundation, steel frame and ground windbreak panel. Wind dust net length not more than 6.15m maximum (net length, the steel structure farther away, the worse the wind effect), peak height 7.5cm best wind. When erect a windbreak wall, you must stay out door holes to facilitate vehicle access.

Because of the different of geographical environment and weather conditions, it is necessary used different type and different size wind dust net. In order to guaranteed the safety and environmental effects, it is necessary designed by professional person. Windbreak wall installation pictures as below.

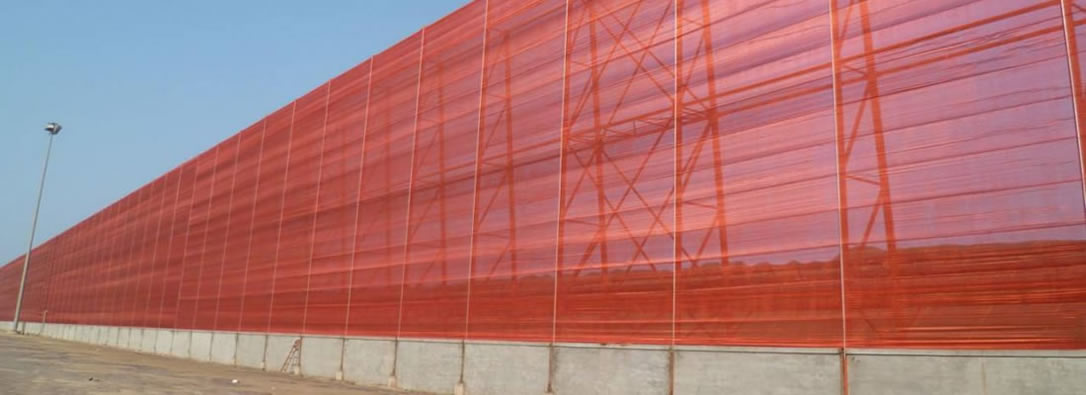

Windbreak wall installation

Windbreak wall with a door hole

Wind break panel wall for coal factory

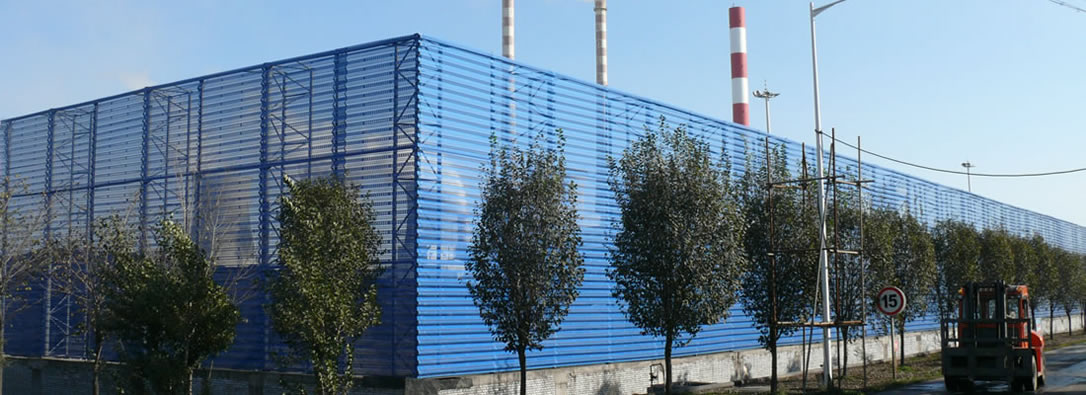

Windbreak wall for thermal power plant

Windbreak panel wall (anti-wind and dust mesh) Application:

1. Power plants, coal mines, coking plants, coal washing plant, in order to save coal field.
2. Ports, terminals and markets a variety of coal storage yard.
3. Iron and steel, building materials, cement companies such as a variety of open-air yard.
4. Coal storage and station of Railway and highway transportation.
5. Construction sites, both sides of the highway and dust road.
6. Crops windproof, desertification weather dust and other harsh environments.
